Coal-burning Steam and Hot Water Boiler
Product Overview:
Category:
key word: Manufacture of heat carrier boiler | steam boiler
Coal-burning Steam and Hot Water Boiler
Introduction

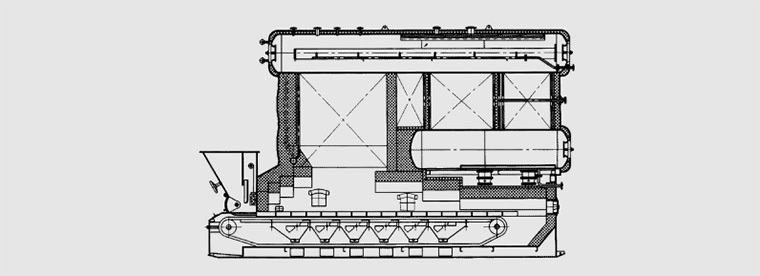

Model SZL serial boiler is a kind of horizontal double-barrel longitudinally arranged chain grate bars water pipe steam and hot waterboiler.

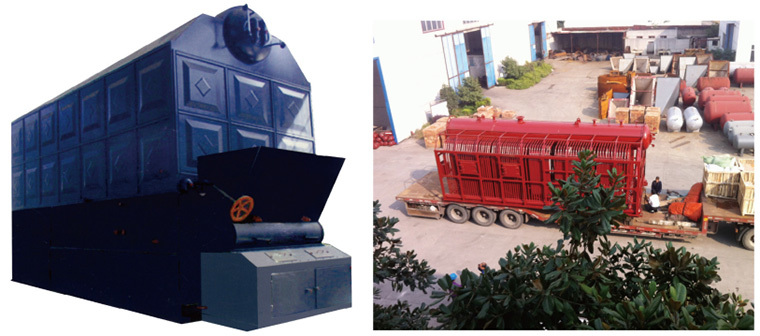

The boiler adopts package or assembled structure. The 4-6 t/h has a package water pipe structure and is assembled before leaving the factory. The 6-25 th has two major parts. The upper major part has the heating surface of the body and the lower major part is a burning device. At the front end of the boiler body there is water cooling wall arranged round about. Its upper part is connected with the barrel while its lower part is connected with the container to form the combustion chamber in order to absorb radiation heat of the hearth. At the rear end there are convection tubes densely arranged between the upper and the lower barrels. High temperature smoke after burning laterally scours the convection heating surface then enters into the coal economizer, the air pre-heater and the dust eliminator and is exhausted out at last via the chimney.
The boiler has advantages of the package boiler such as compact structure, single storey of the boiler room, simple assembling at the site, short period, low cost and easy operation. The serial steam boilers are suitable for steam supply for industry and living while boilers with corresponding capacity are suitable for industrial and civil heating.

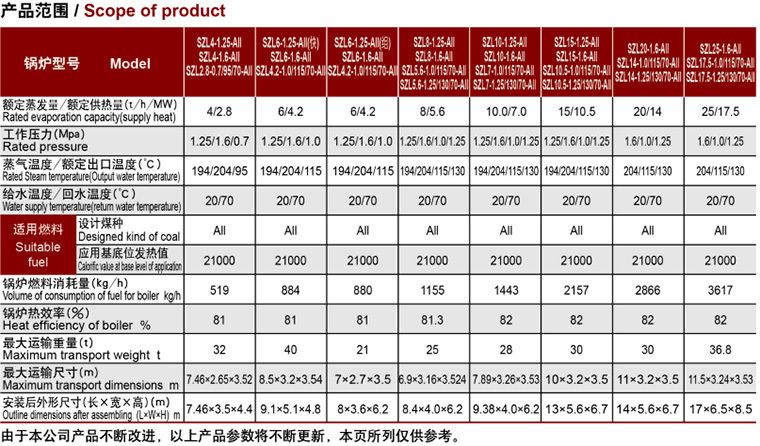

Scope of product
Related Products
HI (indirect style), HD (direct style) serial hot-blast furnace is a specialized industrial one produced by pour company. It takes coal, oil (gas) as fuel and mixed smoke and air as the carrier to transfer heat energy to heat consuming equipment by means of forced transfer of the circulation fan.
QXS series molten salt heating furnace is a direct-flow style special industrial furnace which takes coal, oil and gas as fuel and the molten salt as the carrier to transfer heat energy to heat consuming equipments by means of the circulation pump with forced liquid-phase circulation. The molten salt shall be returned to be heated again and the whole system consists of heating furnace, circulation pump and melting system.
The autoclave is a large-scale steam curing equipment and is used for steam curing of sand lime brick, fly ash brick, aerated concrete and building block, high strength cement lamp pole, pipe pile and other cement products. Meanwhile it is also suitable for wood, medicine, chemical, glass and heat preservation industries.
